COOKING / HEATING / BAKING / GENERATING HOT WATER

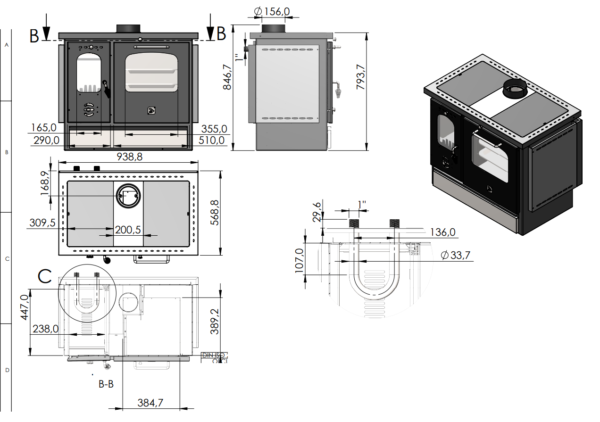

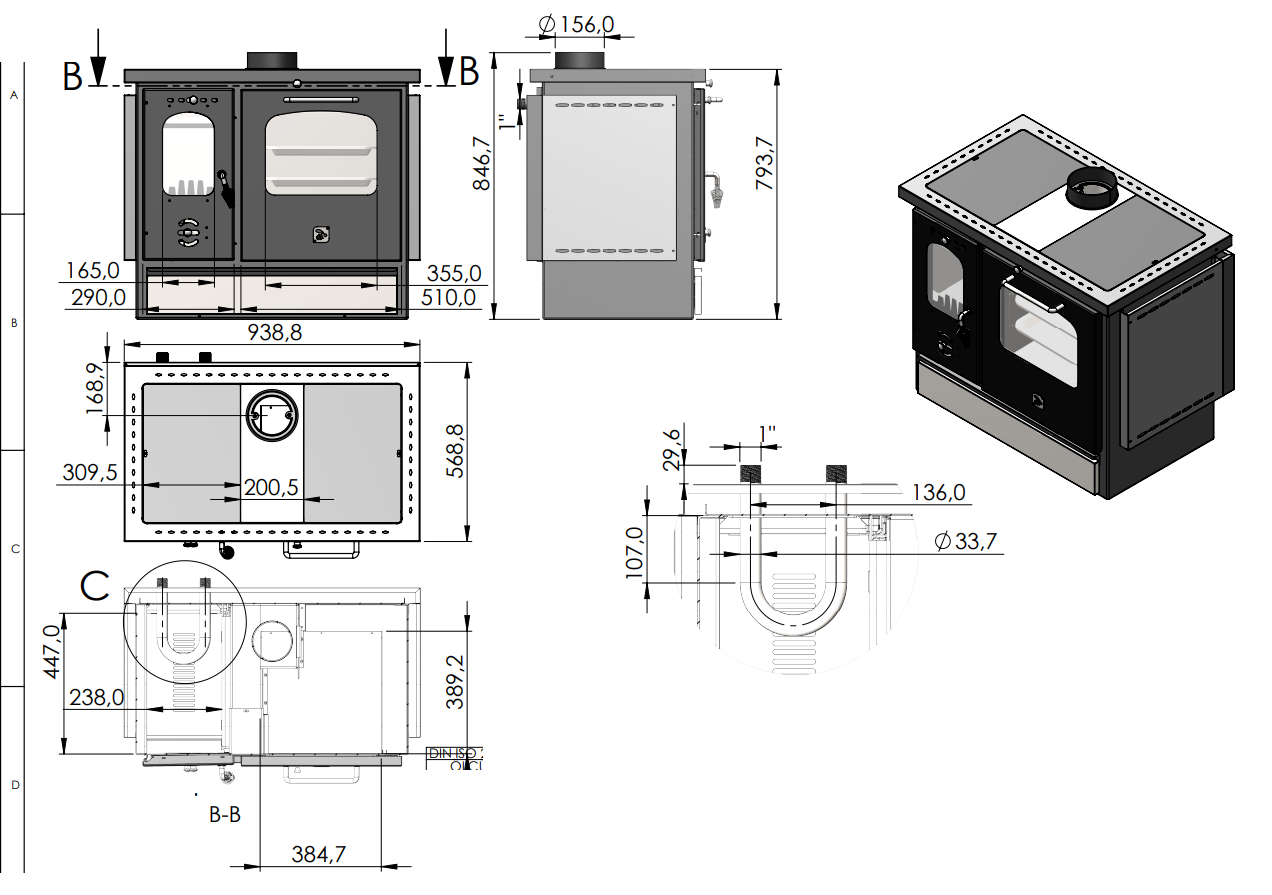

HEIGHT: 793.7mm / DEPTH: 568.8mm / WIDTH: 938.8mm
FIRE BOX: (approx.) 5mm steel fire walls and fire grates.
HEIGHT: 400mm / DEPTH: 447mm / WIDTH: 238mm

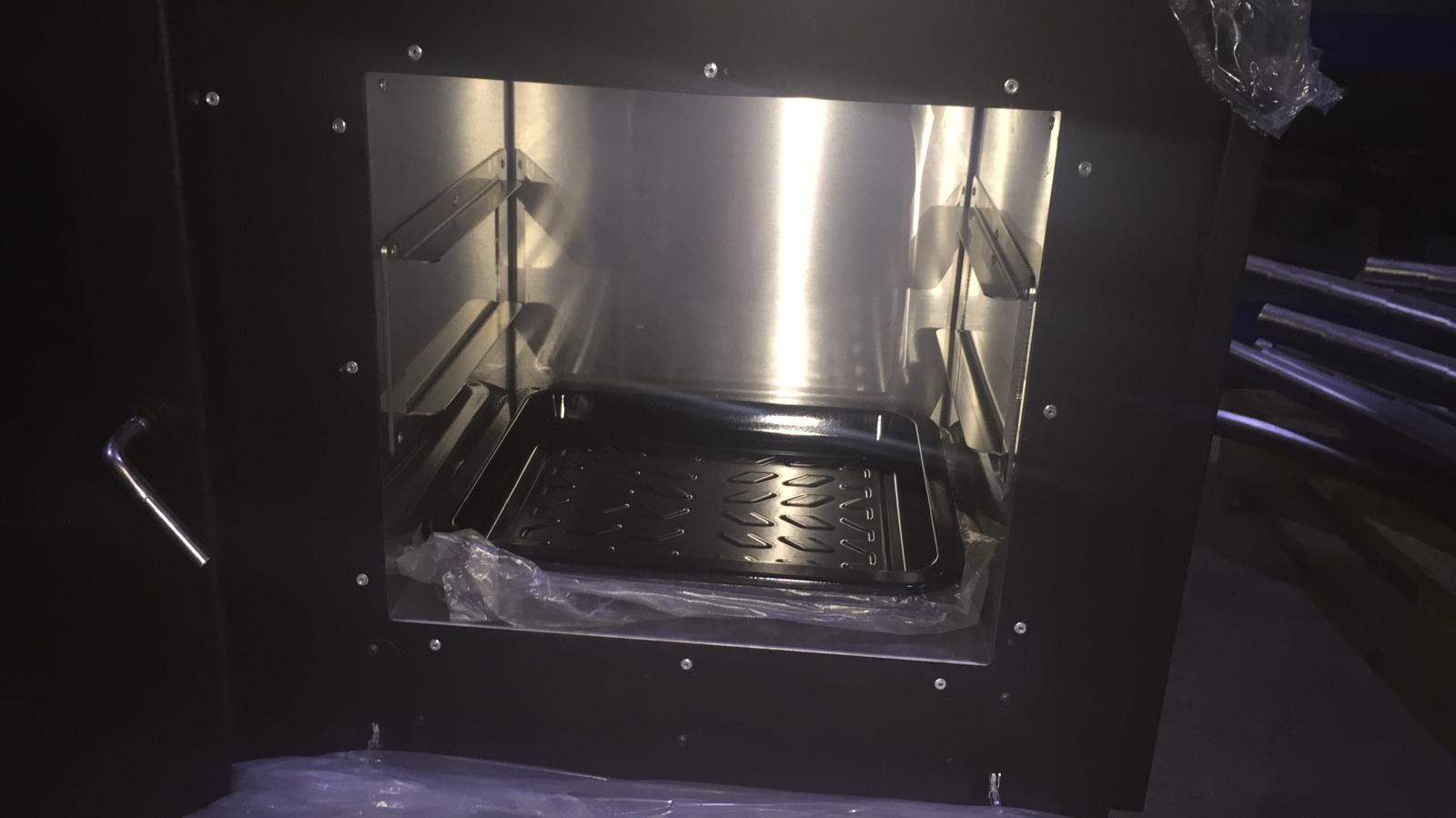

Stainless steel construction with oven trays.
HEIGHT: 336.7mm / DEPTH: 368mm / WIDTH: 384.7mm
1. LARGE WARMING DRAWER constructed of stainless steel. (*only available on drawer base).
2. WETBACK OPTION is available. Made of a stainless-steel pipe and comes with predrilled holes for easy installation. The WETBACK is an additional $290.

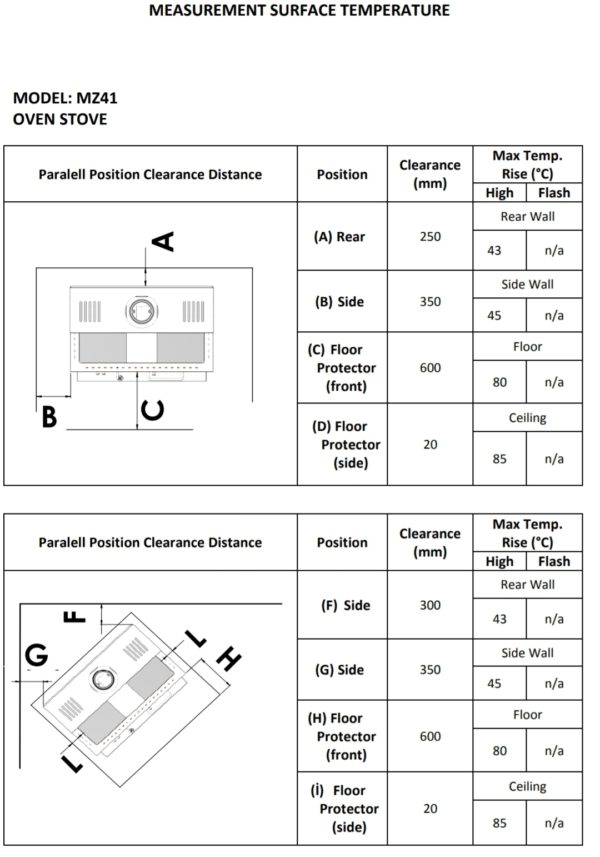

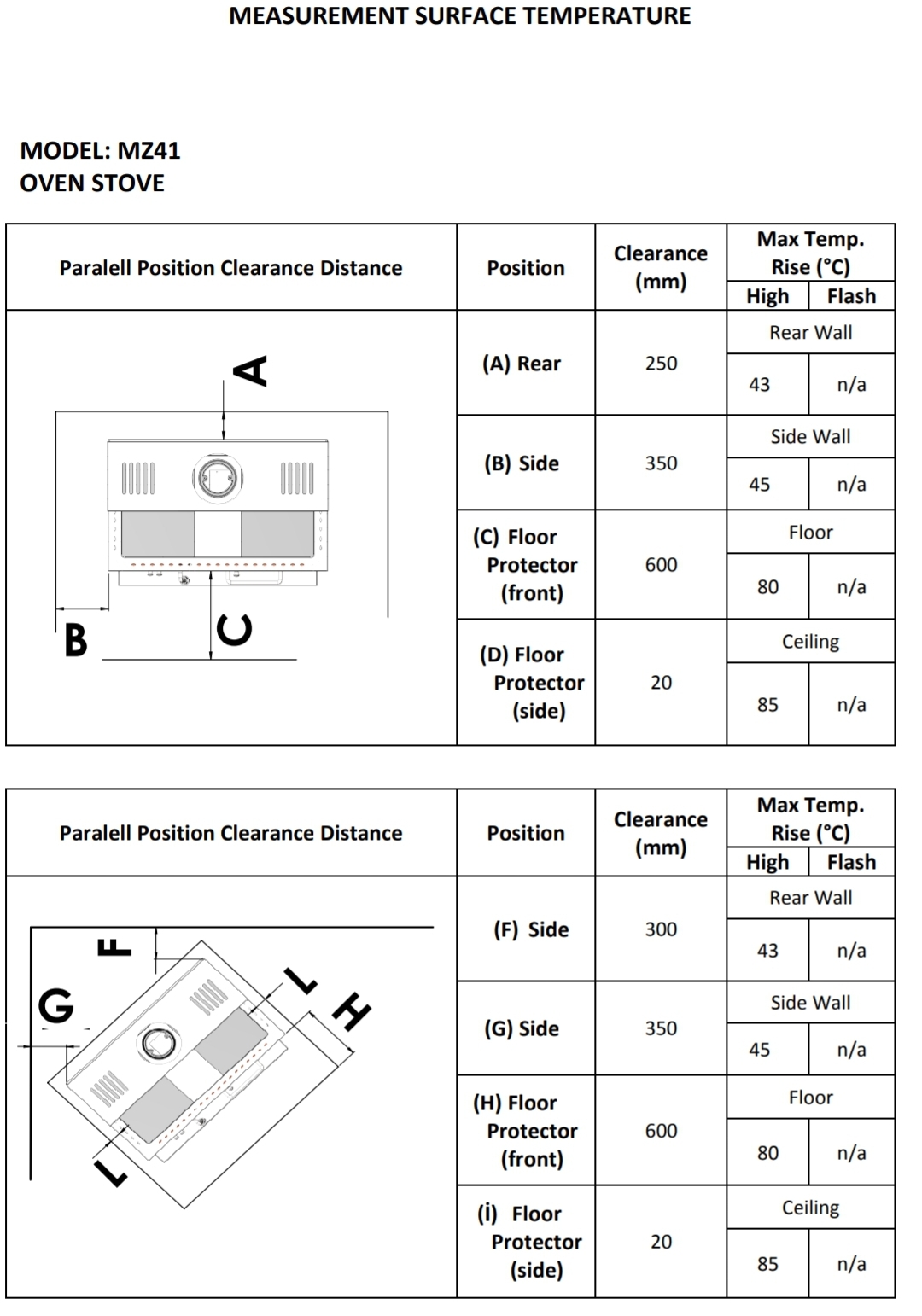

3. HEAT SHIELDS are located on the left, right, and rear positions of the stove. The splash-back is included.
4. FLUE is a standard 150mm diameter, (FLUE KIT prices range from $475 to $525).
5. LARGE COOKING SURFACE for multiple cooking pots and pans: 6mm steel plates.

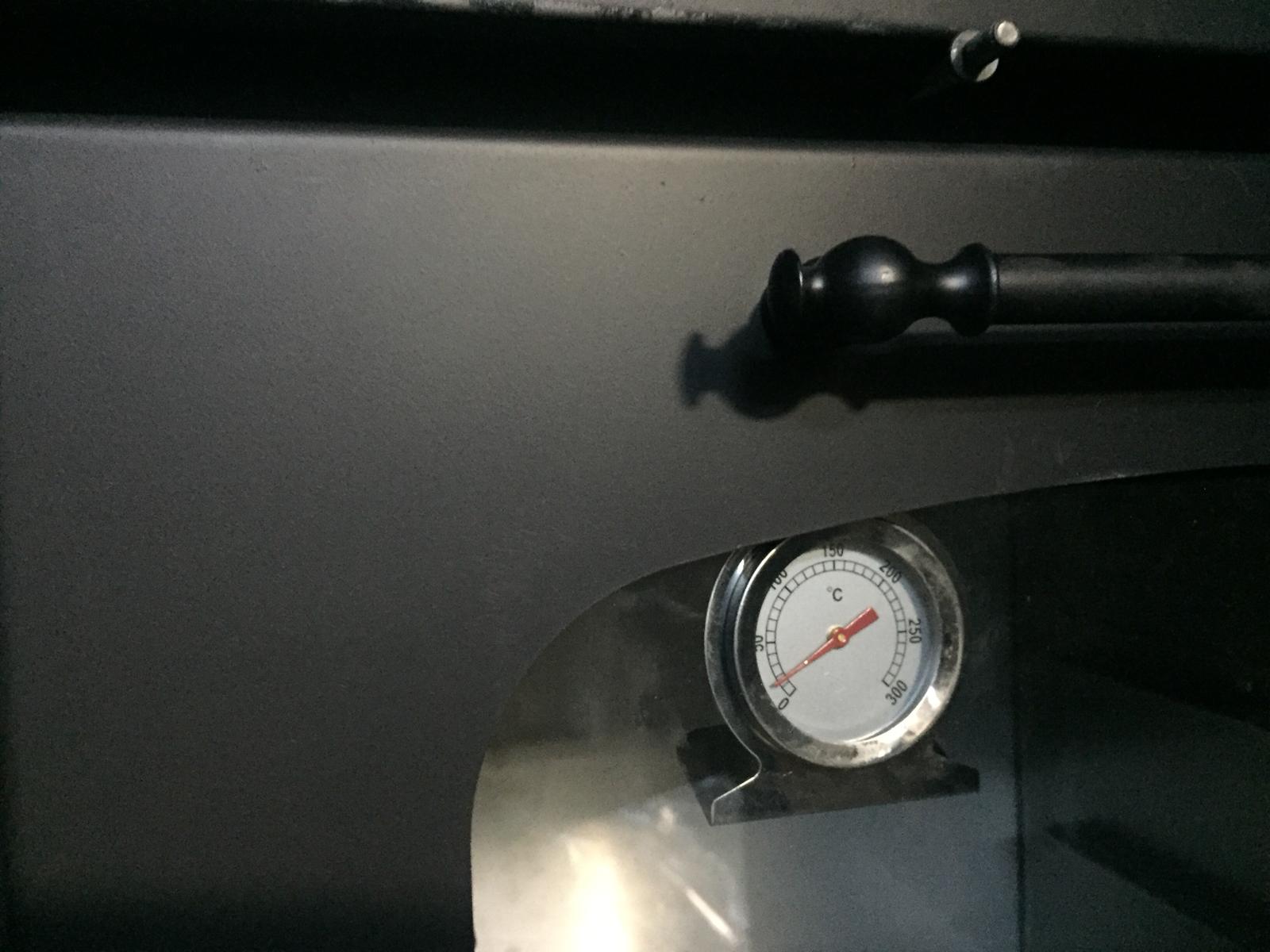

6. OVEN TEMPERATURE GUAGE.
7. PAINTED with high heat German-made paint. Comes in matt black, for easy maintenance.
8. EASY, simple controls.
9. THREE AIR CONTROLS for more efficient burning. Primary and secondary air intakes are located on the fire door. The tertiary air control is located on the left side, on the stove (for mixing unburned gases with extra air for double burning).
10. GLASS in the firebox door and oven door.

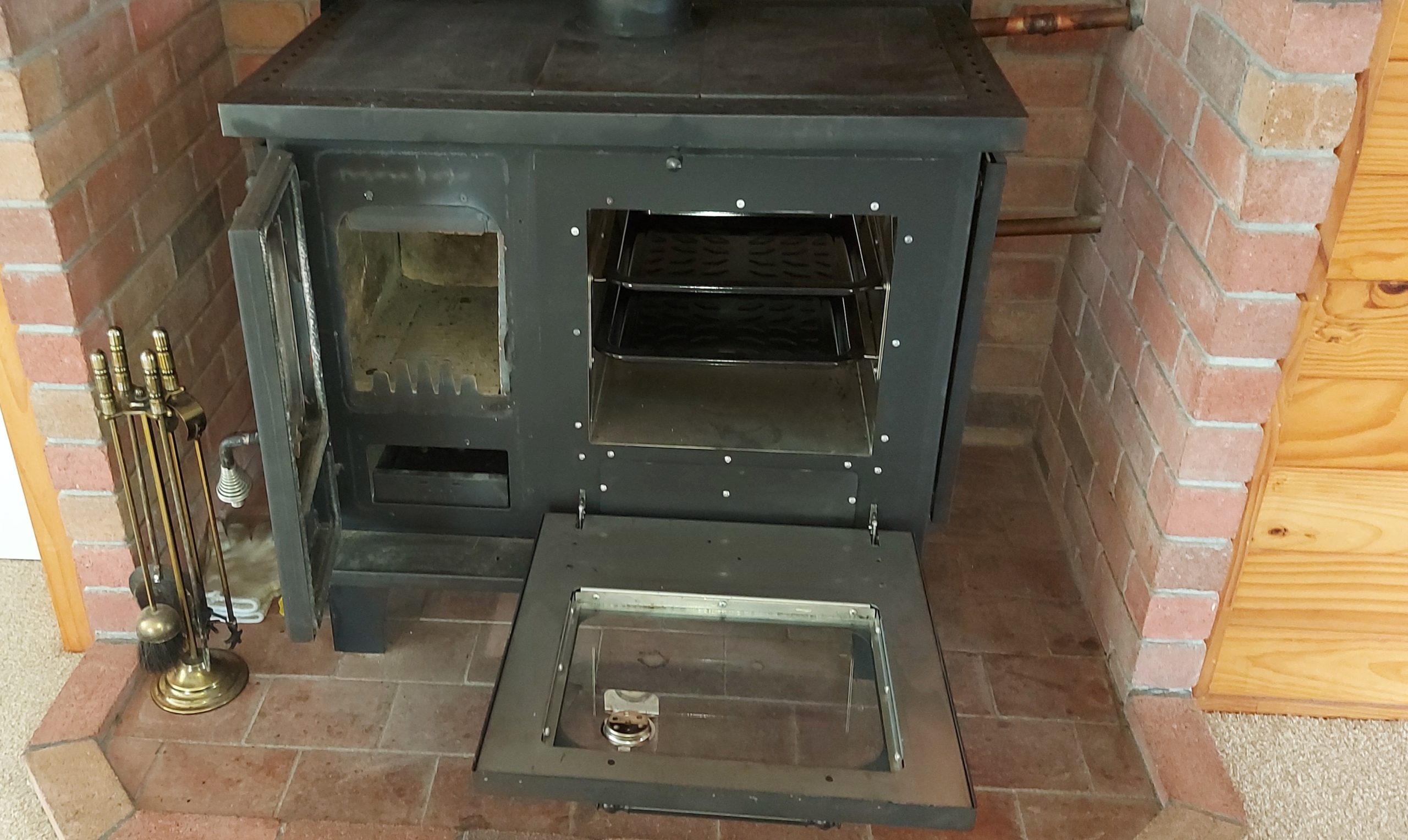

11. OVEN DOOR opens to the front, rather than left to right. This allows for space saving and helps avoid food spilling onto the floor.
12. LARGE FIRE BOX lined with 5mm steel construction plates.
13. LOW MAINTENANCE.
14. HEAT OUTPUT (nominal to minimum) 16KW rating.
15. WEIGHT: 165kgs (approx.)
16. TURKISH MADE to EU STANDARDS.
This is an untested appliance and the installer needs to adhere to AS/NZS 2918:2018.
These standards are sensibleness for safety reasons and can be easily complied with.
